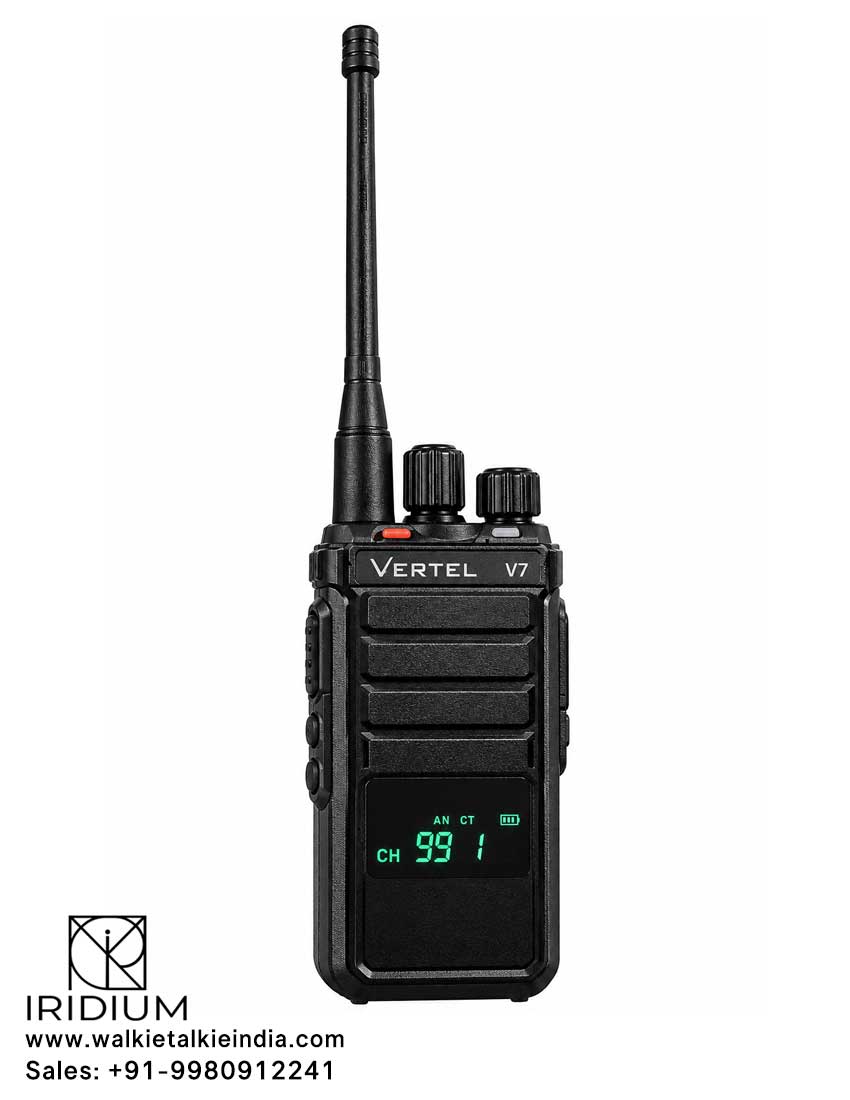

Ranger V7 - Vertel License Free Walkie Talkie
Technical Specifications
General Specs
| Specification | Details |
|---|---|
| Frequency Range | 446-446.2 MHz |
| Channel Capacity | 99 Channels |
| Operation Voltage | DC 7.4V |
| Antenna Impedance | 50Ω |
| Channel Spacing | 12.5KHz |
| Operating Temperature | -20°C to +60°C |
| Frequency Stability | ±2.5 PPM |
| Dimension | 149*64*37mm |
| Weight | 292g |
| Battery Capacity | 4200mAH |
Transmitter Specs
| Specification | Details |
|---|---|
| RF Power Output | 0.5 W |
| Modulation Type | F3E |
| Max Frequency Deviation | 2.5KHz@12.5KHz |
| FM Hum & Noise | <45dB |
| Tx Audio Distortion | <3% |
| Adjacent Channel Power | <70dB |
Receiver Specs
| Specification | Details |
|---|---|
| Receiving Sensitivity | 0.2µV@12dB SINAD |
| Adjacent Channel Selectivity | ≥70dB |
| Modulation Type | F3E |
| Audio Distortion | <3% |
| Audio Output Power | 1W |
